What's the Difference Between SLAM Algorithms for Handheld Lidar?

为了在研究手持式LIDAR扫描仪时获得完整的故事，您还需要比较SLAM算法。这三个标准将帮助您：处理速度，传感器集成和着色。

While researching handheld Lidar scanners, you will probably scour spec sheets, cross-reference features, and read about software workflows. But that will get you only part of the way to understanding the market – you will also need to compare the simultaneous localization and mapping (SLAM) algorithms that power these devices and enable them to create a point cloud as you walk.

The problem is that SLAM algorithms can be difficult to understand if you're not a software engineer. Good news: there are a few criteria you can use to judge SLAM algorithms. These criteria will help you understand what sets one SLAM algorithm apart from one another, giving you the information you need to narrow the field.

Those are processing speed, sensor integration, and colorization. Let's dig in.

Processing Speed

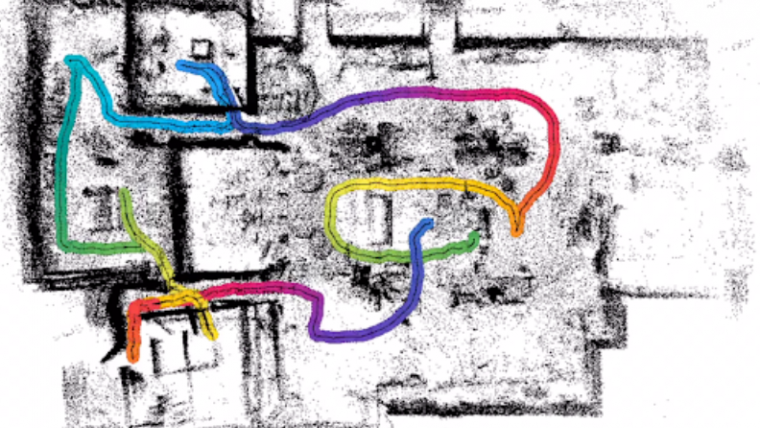

A SLAM algorithm makes an astounding number of calculations each second. It tracks your movement through a space using data fed by a number of sensors, and then fuses that sensor data to align the millions of measurements captured by the Lidar. It's a tough challenge, and each SLAM algorithm will approach it in a different way, which means that each algorithm will process at a different speed.

Real-time processing:这些SLAM算法在捕获时处理您的扫描，以便在完成环境后立即下载可用点云。权衡是这种方法牺牲了一些可靠性，使算法更有可能在具有挑战性环境中进行跟踪或处理错误。当您绝对需要在数据上即时转过来时，此方法最适合。

Post-capture processing:Many SLAM algorithms use this method, which requires that you begin processing your scan after completing the capture. It takes longer than real-time processing (obviously), but it also ensures greater reliability in your scan results. Depending on your timeline, the extra processing may not prove to be a big issue – you might have downtime built into your schedule, for instance while driving to a site, overnight between days of work, while eating meals. If you can use these otherwise inactive periods to process your data, you can ensure the highest quality data without any extra active time.

Both:Some SLAM implementations let you select whether to process your data in real time or after the capture, enabling you to adapt your approach to the needs of each individual situation.

Which is right for you?The best SLAM algorithm will offer a balance of processing speed and reliability that fits your company’s workflows.

Sensors

SLAM implementations can differ according to the hardware they use, and that's true especially of the sensors that capture the data the algorithm needs to make its calculations.

An IMU and a Lidar sensor:This SLAM approach is very effective in open areas that contain distinct 3D geometry, like chairs, pipes, railings, trees, etc. However, SLAM like this can have trouble in areas dominated by planar shapes like walls. Hallways, warehouses, and other areas are more likely to cause errors and result in bad data.

一个或多个摄像机:This approach to SLAM, which is more often used in robotics, is better at tracking the operator as they move through the feature-poor environments listed above. There are still limitations, though. Camera-based SLAM requires good lighting conditions, so it can have trouble in areas of high-contrast light, dim light, or outdoors. It also returns errors in environments with repeating patterns. Though it can track planar shapes, it will often have trouble with blank walls.

激光雷达传感器和摄像机:This kind of SLAM is better at tracking your movement through a variety of environments, indoors and out, regardless of the dominant geometric features or lighting conditions. Though it's not error-proof, it offers the best of both methods outlined above.

Which is right for you?The SLAM algorithms you should test are the ones that are most likely to work well in the environments you will be scanning regularly.

彩色化

Many SLAM algorithms offer a way to colorize your point cloud. The result is much easier to read than a raw point cloud – it looks like a colored 3D photograph, making it much easier to discern environmental elements like columns, rebar, doors, trees, cars, and so on.

Post-scan colorization:在完成扫描后，许多SLAM算法将着色点云数据。使用此方法的扫描仪通常要求您将辅助相机附加到设备，并在工作流中执行额外的处理步骤以实现所需的结果。

自动colorization:Some approaches to SLAM will colorize your scan automatically as you capture. However, not all handheld scanners approach this function in the same way.

Some handheld scanners include a camera and enable you to use it for either tracking your movement or colorization, but not both during the same scan. Others enable you to do both.

Some scanners use SLAM that offers automatic colorization, but include a camera with a smaller field of view than the Lidar sensor. That means even if you ensure that you capture the entire environment with the Lidar, there will be portions you miss with the camera – resulting in a mix of colorized data and uncolorized data. Other scanners also include cameras with a wider FOV to ensure that all Lidar points are colorized.

Which is right for you?考虑是否是RAW，未解决的点云是您的工作流的理想选择，或者您可以从彩色中受益。然后，决定是否希望该颜色是自动的，并且实现了哪些实现涵盖了您的需求。

Conclusion

Even without getting too technical on SLAM algorithms, you can see that not all SLAM algorithms are the same. Each SLAM algorithm results from a series of choices and compromises, and that means no SLAM algorithm is going to offer the best performance in every environment.

After reading the list above, you should be in a good position to determine which factors are most important to your workflow and make an informed choice about what scanners to bring in for a test.

本文的原始版本已发布Paracosm, the developer of thePX-80 handheld scanner.
